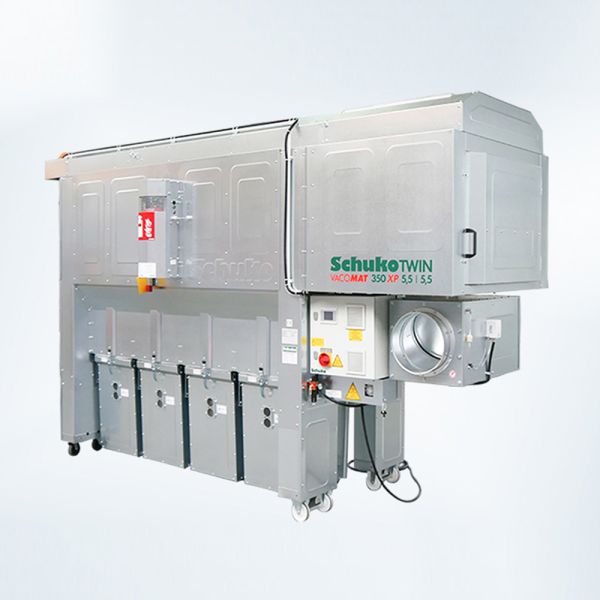

Schuko VacoMAT 350 XP /Twin

The Vacomat 350 XP TWIN large dust extractor is a real energy-saving star amongst mobile dust extractors. Two frequency-regulated motors (5.5 kW each) ensure suitably adjusted extraction performance, especially with strongly fluctuating operating conditions. Thus only the amount of energy actually needed is used. This dust extractor has an airflow capacity of 10,000 m³/h and is ideal for extraction of dust from large CNC machines or entire machining centres.

The innovative and highly intelligent controller automates the extraction process with the machines connected as a group. Extraction begins automatically as soon as an attached machine tool is switched on. If performance requirements are low, only one fan is started. As soon as multiple extraction points start running the second fan is automatically switched on.

In the standard version filter bag cleaning starts automatically when operation pauses and all attached machine tools are switched off. Then our patented pneumatic-mechanical filter shaking process provides for gentle cleaning through a ‘shaking out’ action (inlet pressure: 6 bar, air requirements per cleaning cycle: approx. 11 l).

Recommended particularly for very high and very fine dust contents, an efficient pressure surge cleaning system is optionally available (NOTE: overall height then +100 mm and length +350 mm). Cleaning is carried out offline via the compressed air tank after extraction.

Our Vacomats are modularly constructed. In the standard version the dust and chips are discharged to four dust-tight plastic sack-lined chip collection tanks (4 x 120 l). A negative pressure duct holds the film sacks in place in the collection tank. Inspection windows facilitate level checking.

The dust extractor can alternatively be supplied with discharge to a briquetting press (with upstream chip tank) or big bags, a container or chip bunker (with upstream ATEX rotary airlock valve and screw conveyor).
