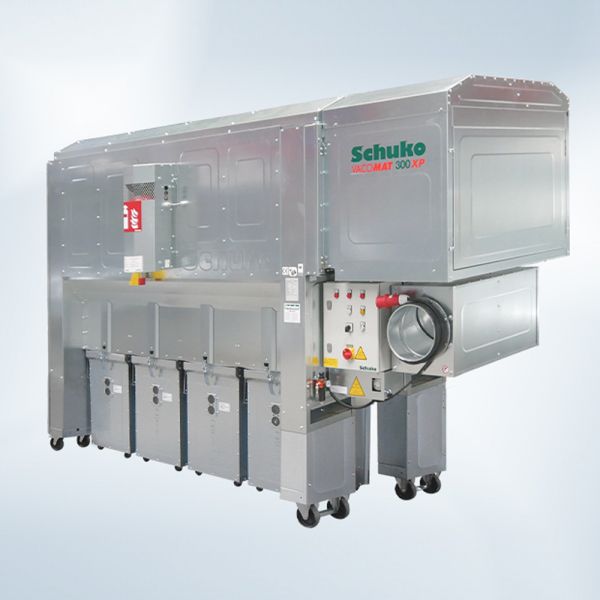

Schuko VacoMAT 300 XP

The Vacomat 300 XP large dust extractor is the ideal dust extraction system for multi-machine extraction.

Top Key Features

  • Extraction centre for powerful multi-point extraction
  • Can be combined with various chip discharge systems
  • Tested safety – H3 and GS test marks
  • Energy-saving low-noise operation
  • Delivered preassembled and ready to plug in for immediate use

Overview

The Vacomat 300 XP large dust extractor is the ideal dust extraction system for multi-machine extraction. Airflows of up to 6,000 m³/h are possible with this clean air extraction system, making it also interesting for CNC machines or wide belt sanders.

The standard Vacomat 300 XP comes with an automatic controller to ensure that the powerful extraction system is not forgotten or run at no load. If an attached machine is turned on, the dust extractor fan starts automatically, causing extraction to begin immediately.

Our Vacomat 300 XP is modularly constructed. In the standard version the dust and chips are discharged to four dust-tight plastic sack-lined chip collection tanks (4 x 120 l). A negative pressure duct holds the film sacks in place in the collection tank. Inspection windows facilitate level checking.



Discharge via chip tanks, ATEX rotary airlock valves and screw conveyors for disposal to a briquetting press, big bags, a container or a chip bunker is also possible.

Filter bags are cleaned automatically once all connected machine tools have been shut off. Our patented filter shake-off process cleans the filter bags by a combined pneumatic and mechanical action. Via connection of compressed air dust and chips are knocked gently off the filter by a shaking motion.

Recommended particularly for very high and very fine dust contents, an efficient pressure surge cleaning system is optionally available (NOTE: overall height then +100 mm and length +350 mm). Cleaning is carried out offline via the compressed air tank after extraction.

Key Features

  • Extraction centre for powerful multi-point extraction
  • Can be combined with various chip discharge systems
  • Tested safety – H3 and GS test marks
  • Energy-saving low-noise operation
  • Delivered preassembled and ready to plug in for immediate use
