Schuko VacoMAT 200 XP & Xpe

Vacomat 200 XP und 200 XPe

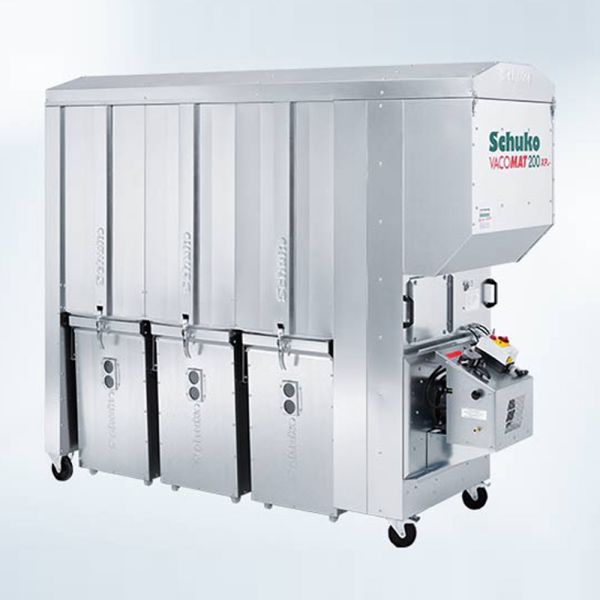

The Vacomat 200 XP(e) mobile dust extractor is the ideal filtration system for single- or multi-machine extraction. Reliable airflows of up to 2,495 m³/h are possible with this negative pressure system, making it ideal for, e.g., dust extraction from panel saws and small bandsaws.

In the standard version extraction is started manually with the push of a button. Automatic fan start-up upon switch-on of the connected machine tools can be installed upon request to avoid operating errors such as not switching the extraction on when there is a load or switching it on when there is no load.

Dust and chips are discharged to three dust-tight plastic sack-lined chip collection tanks (3 x 160 l). A negative pressure duct holds the film sack in place in the collection tank. Inspection windows are provided for level checking.

The mobile dust extractor monitors the extraction performance via a load cell to ensure maximum operational reliability.

Rather than discharging to three chip collection tanks, it is possible to integrate a chip tank to enable low-dust disposal via a Schuko briquetting press.

Filter regeneration – XP or XPe?

Filters in the Vacomat 200 XP are cleaned by a combined pneumatic and mechanical action. Dust and chips are expelled gently from the filter in a patented ‘shake-off’ process when a compressed air supply is connected. As soon as the dust extractor is switched off, the regeneration mechanism can be started by hand.

In the Vacomat 200 XPe an integrated switchgear cabinet is used for electromechanical cleaning via a shaker motor. Activation occurs via querying of the woodworking machine via floating contacts. As soon as all connected machines are off the motorised filter shaker starts automatically. For the regeneration mechanism no connection to a compressed air supply and thus no compressor is necessary. This leads to a significant reduction in noise during cleaning.

Recommended particularly for very high and very fine dust contents, an efficient pressure surge cleaning system (XP-D or XPe-D) is optionally available (NOTE: overall height then +100 mm and length +350 mm). Cleaning is carried out offline via the compressed air tank after extraction.
