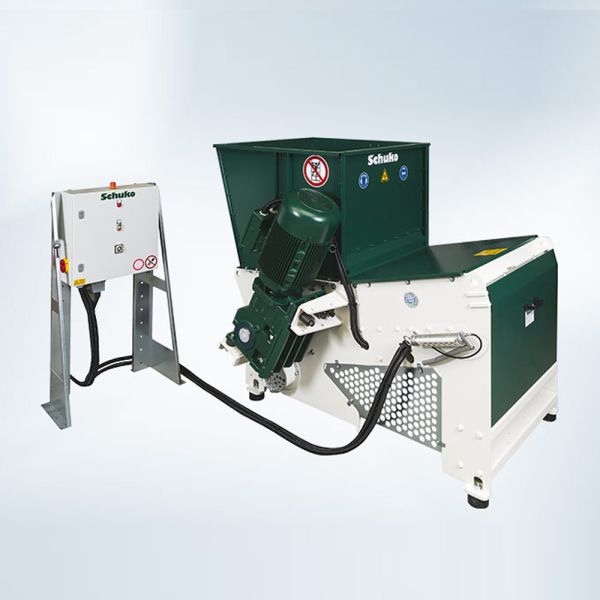

Shredders - ZM 800-K, ZM 900-K & ZM 1000-K
Robust, strong, long-lived and economical. If you need to cut up your waste wood into wood chips, then the single-shaft shredder is right for you.
Top Key Features
- Easy shredding of waste wood and residual wood, MDF, chipboard, pallets and co
- Different screen sizes for the desired final chip dimensions
- Chip briquetting possible
- High throughput at low noise level
Overview
If you need to cut up your waste wood into wood chips, then the single-shaft shredder is right for you. With a powerful cutting shaft each of our three sizes effortlessly cuts up all waste wood, even entire pallets.
The inclined feed-in tray presses the input material against the rotating cutting rotor. A screen underneath with a mesh size of 14–30 mm retains large pieces in the hopper for further comminution. The differently sized screens can easily be changed according to the further processing requirements for the shredded product.
The cut-up wood can, for example, be used for in-house heating or compacted in a briquetting press as required. Residual metal parts such as nails are segregated via an in-line magnetic separator.
An extraction system or an inclined screw discharge system for direct conveyance, e.g., to a chip bin can be installed for automatic disposal of the shredded product.
A money-saving high-efficiency motor (IE3) is used for the gear drive. Owing to the direct drive, our shredders output approximately 10% more power at the shaft than belt-driven models and thus operate much more effectively. To save additional power all Schuko shredders shut down automatically when idle.
Schuko shredders are distinguished by their long life and trouble-free operation. They feature solid constructions with low-wear all-steel cutting shafts. The material feed-in tray is inclined for a higher material throughput. This causes the input material to be pressed against the cutting shaft with a higher force. Double-sided break-proof blades and easy-to-reach lubrication points minimise follow-up costs and maintenance requirements.
Key Features
- Easy shredding of waste wood and residual wood, MDF, chipboard, pallets and co
- Different screen sizes for the desired final chip dimensions
- Chip briquetting possible
- High throughput at low noise level
- Energy-saving slow running with the latest IE3 motors
- Automatic idle machine shutdown
- Long-lasting, replaceable blades
- Robust, durable construction
